Parallel test rig for axial turbine seal

Our seal test rig and in particular the test rig for turbine seals complies current ICE and ISO norms for turbines, pumps and fittings / valves. We analyze, optimize and verify any custom seals of axial turbines. The seal test rig also has the possibility of a parallel setup of two units to answer your question profoundly.

Specifications of seal test rig:

  • Speed controlled engines with a power of 15/30kW
  • Measurement of
    • Friction torque/power
    • Leakage
    • Pressure
    • Temperature
    • Axial deformation
    • flow
  • Continuous recording of measurement data via data-logger
  • Dosage of abrasive particles enable tests under extreme conditions

Figures of test rig for turbine seal:

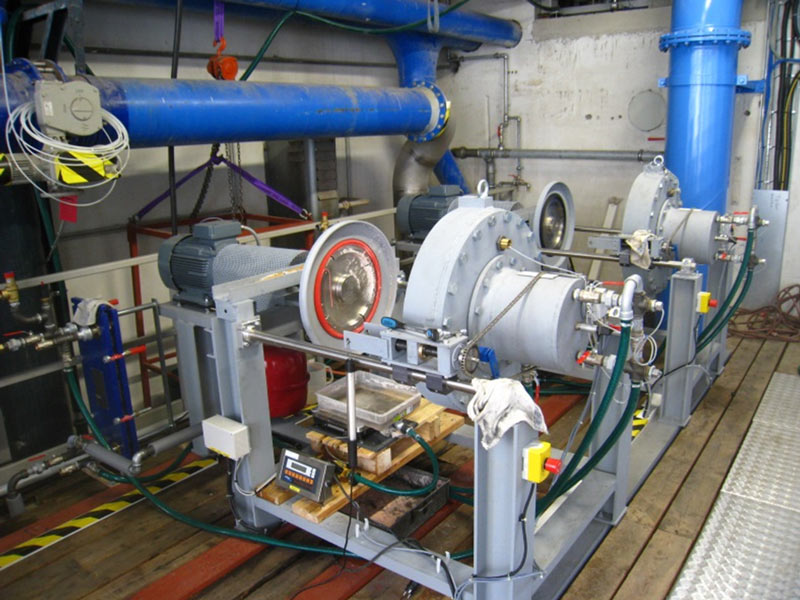

Seal test rig: Custom Seals of axial turbines in a parallel structure are examined / tested.
Seal test rig: Custom Seals of axial turbines in a parallel structure are examined / tested.

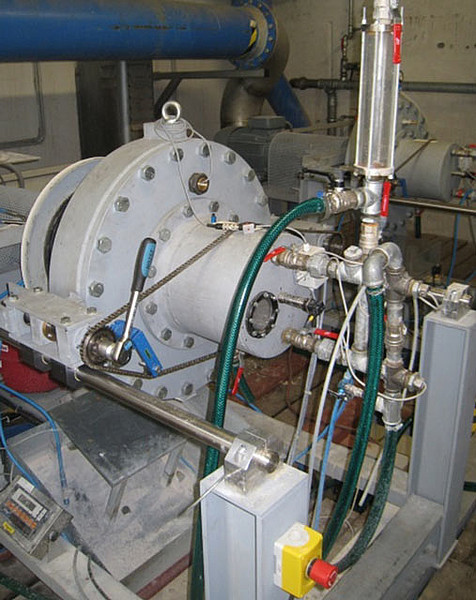

Test rig for turbine seal: detailed picture
Test rig for turbine seal: detailed picture
information test rig

We adopt our test rigs to special demands. Contact us to discuss your questions and custom design of the test rig.



Standards & norms

  • IEC 60193: Hydraulic turbines, storage pumps and pump-turbines – Model acceptance tests
  • IEC 60534: Industrial-process control valves
  • ISO 9906: Rotodynamic pumps – Hydraulic performance acceptance tests
  • IEC 60041: Field acceptance tests to determine the hydraulic performance of hydraulic turbines, storage pumps and pump-turbines
  • IEC 62006: Hydraulic machines – Acceptance tests of small hydroelectric installations

The list above is an excerpt. For the fulfillment of other standards please contact us.
