Test rig for shaft sealing of pumps

The custom-designed test-rig enables an exact replication of the region around the mechanical shaft seal and an exact simulation of the on-site operation conditions. Absolute accordance of measurement values of the test rig comparered to on-site measurements at the plant.

Specifications of the test rig for shaft sealing of pumps:

  • Max. Shaft diameter: 170 mm
  • Speed: 5,700 rpm
  • Pressure side: P = 40 bar
  • Test rig for long-term test with continuous data recording
  • Remote monitoring
  • Deionized water (DI water)
    • Conductance: 0,1 μS/m
    • Automatic water treatment
    • Temperature 60 ° C



Figures of test rig for pumps:

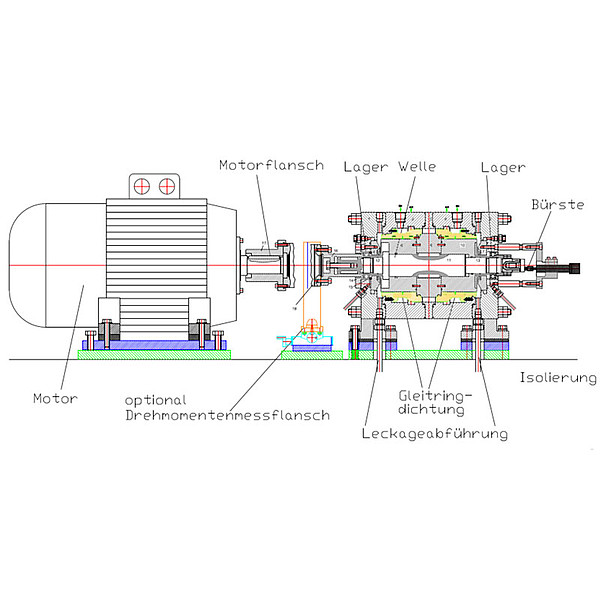

Setup of the seal test rig for pumps / seals for long-term experiments
Setup of the seal test rig for pumps / seals for long-term experiments

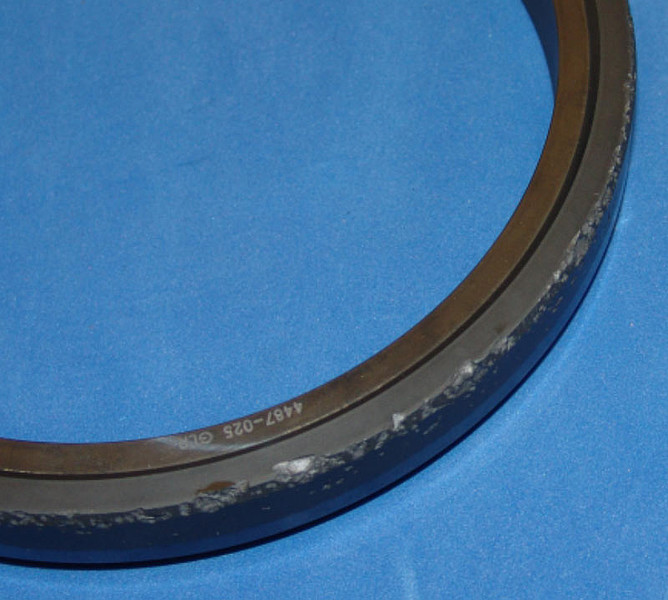

Slide ring seal after long-term experiment at pump test rig
Slide ring seal after long-term experiment at pump test rig

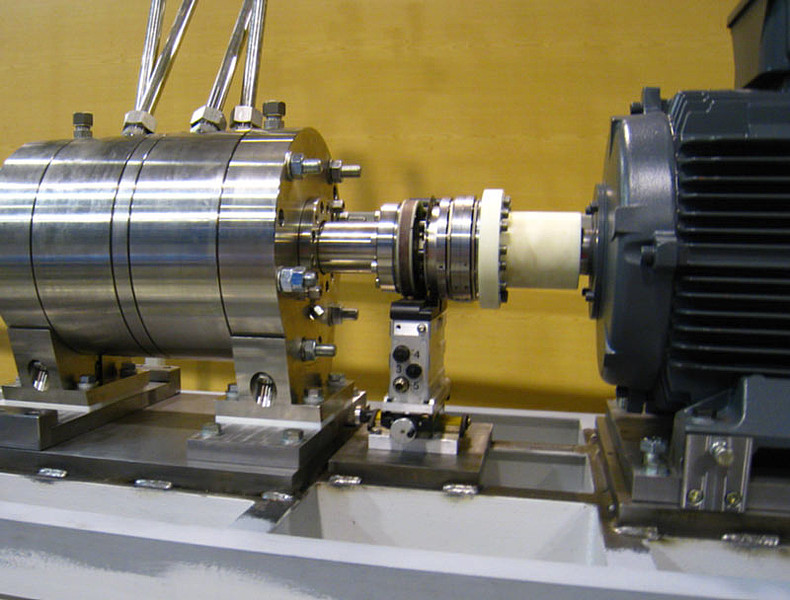

Pump test rig for long-term test with continuous data recording
Pump test rig for long-term test with continuous data recording

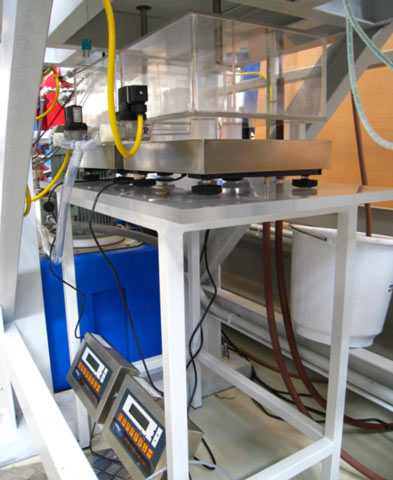

Custom design of the seal test rig for a long-term test of the mechanical seal
Custom design of the seal test rig for a long-term test of the mechanical seal
information test rig

We adopt our test rigs to special demands. Contact us to discuss your questions and custom design of the test rig.
