Modell acceptance tests acc. IEC 60193 and IEC 62006

Our test rigs fulfil the international standard IEC 60193 / IEC 62006 to achieve reproducible and valid data of the acceptance test for turbines, pump turbines and pumps.


Fields of study:

  • IEC 60193 Hydraulic turbines, storage pumps and pump-turbines - Model acceptance tests
  • IEC 62006 Hydraulic machines - Acceptance tests of small hydroelectric installations



Technical equipment:

An essential advantage of the test rig is a flexible adaption to the specific requirements. With our own mechanical production also major modifications are practicable. It is also possible to provide the closed circuit with an open channel.

  • Closed circuit. Piping: DN 500
  • Main pump: Up to 750  l/s and 90 m at 980 rpm. Variable speed, up to 500 kW
    Energy dissipator: 4-stage plunger valve, free of cavitation
  • Underwater tank: Variably adjustable pressure: 1 m to 10 bar absolute. Adjustable cavitation conditions
  • Flow measurement (IDM)
  • Motor / generator (max. 250 kW) for examined machine
  • Overview: 4-Quadranten test rig



Measurement equipment:

Flow measurement including calibration tanks. Data acquisition is designed for static and dynamic measurements.

  • Laser-Doppler anemometry (LDA)
  • Particle Image Velocimetry (PIV)
  • Cavitation measurement
  • Efficiency measurement
  • Characteristic measurement


Test rig acc. IEC 60193 / IEC 62006

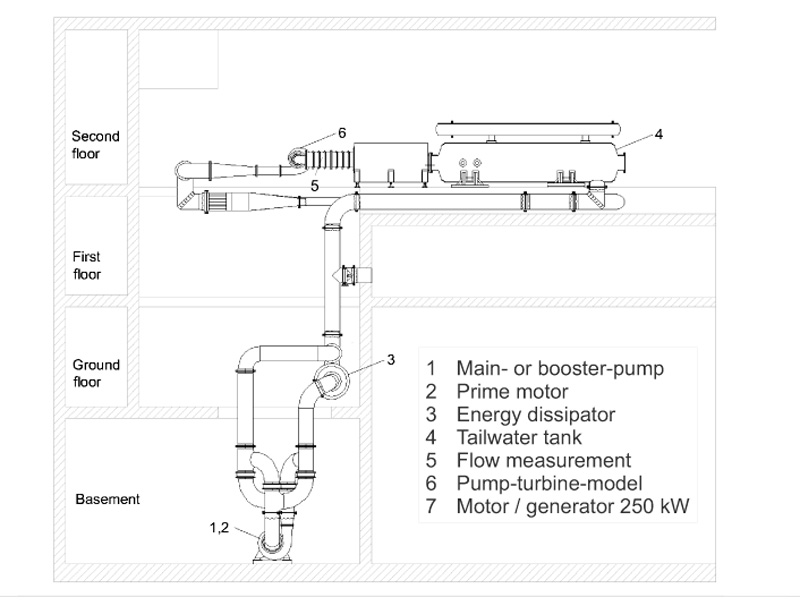

test rig according to IEC 60193 for modell acceptance tests (turbines, pumps, pumturbines,...)
test rig according to IEC 60193 for modell acceptance tests (turbines, pumps, pumturbines,...)

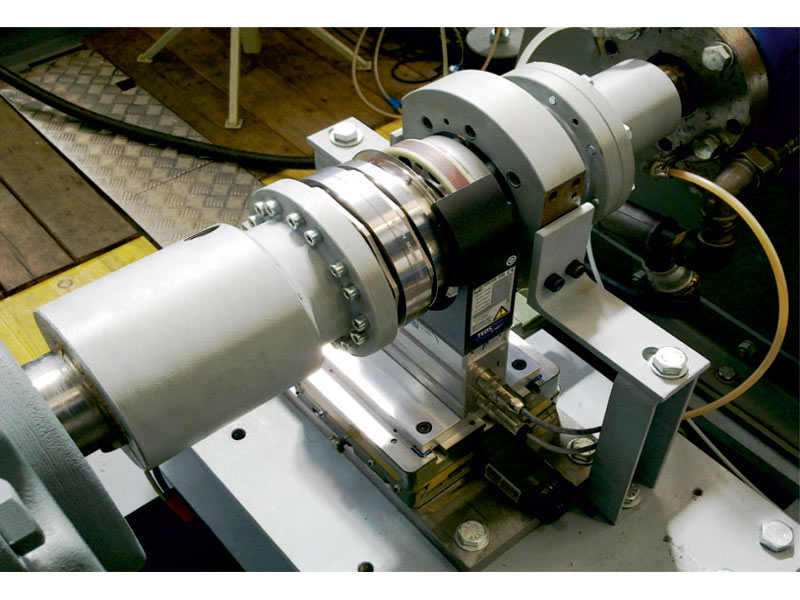

IEC 60193 - modell acceptance test: Torque measurement shaft
IEC 60193 - modell acceptance test: Torque measurement shaft

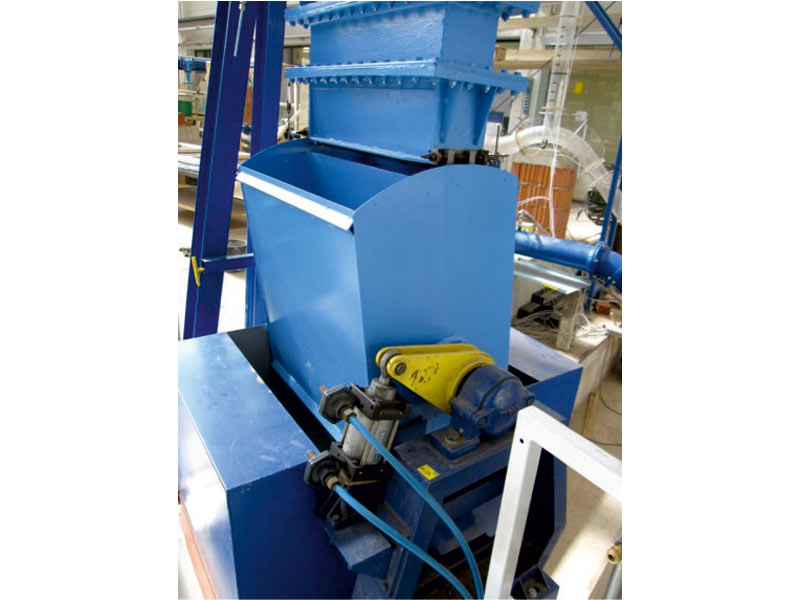

IEC 60193 - modell acceptance test: Swivel gully
IEC 60193 - modell acceptance test: Swivel gully

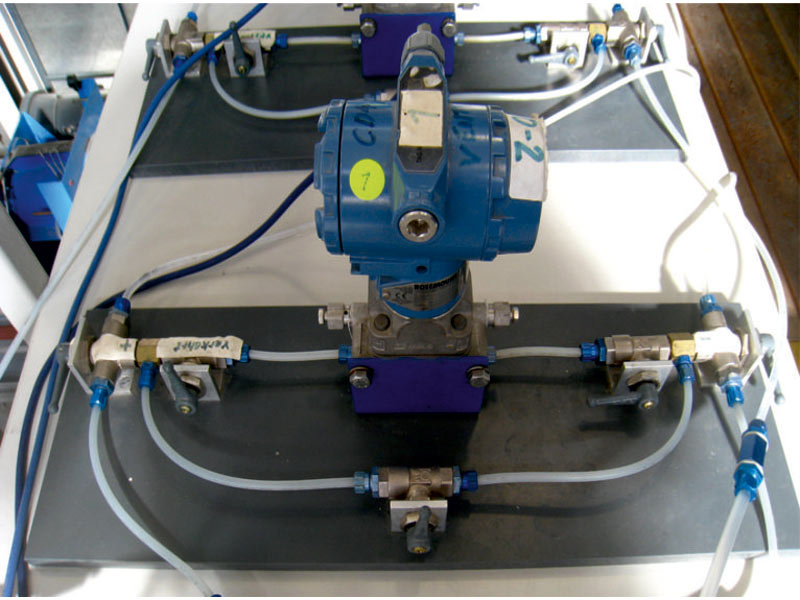

IEC 60193 - modell acceptance test: Rosemount pressure sensors
IEC 60193 - modell acceptance test: Rosemount pressure sensors

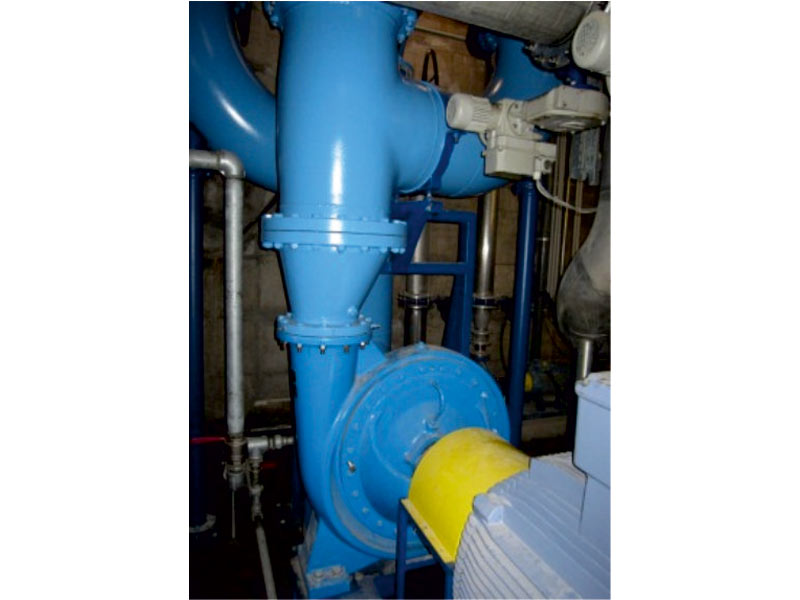

IEC 60193 - modell acceptance test: Main pump: Up to 750  l/s and 90 m at 980 rpm. Variable speed, up to 500 kW
IEC 60193 - modell acceptance test: Main pump: Up to 750 l/s and 90 m at 980 rpm. Variable speed, up to 500 kW

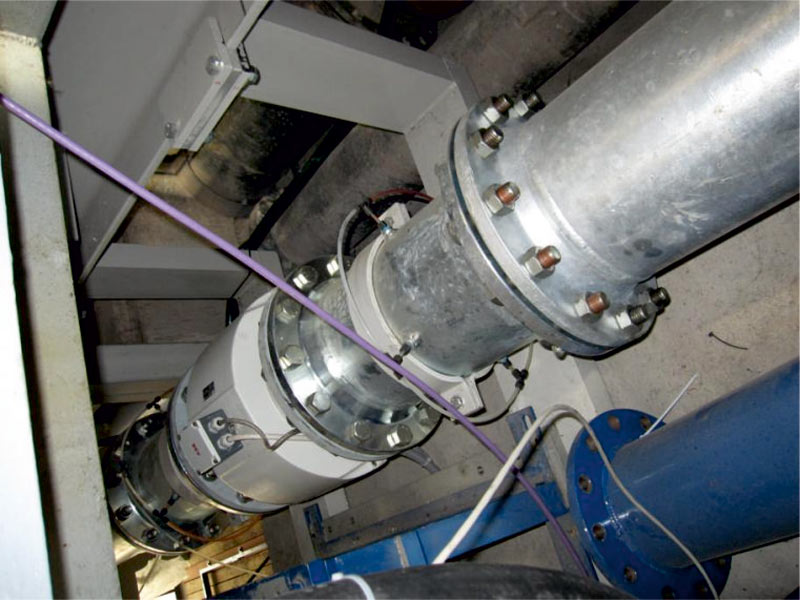

IEC 60193 - modell acceptance test: inductive flow measurement
IEC 60193 - modell acceptance test: inductive flow measurement

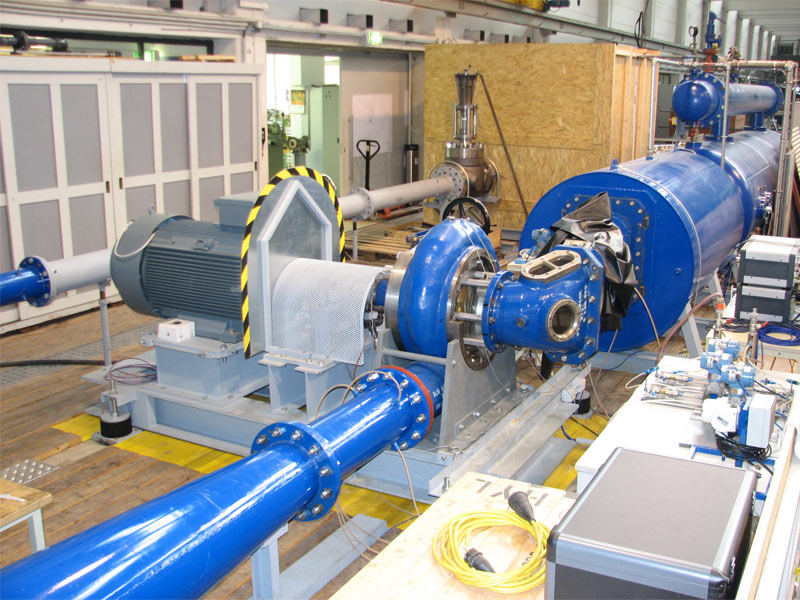

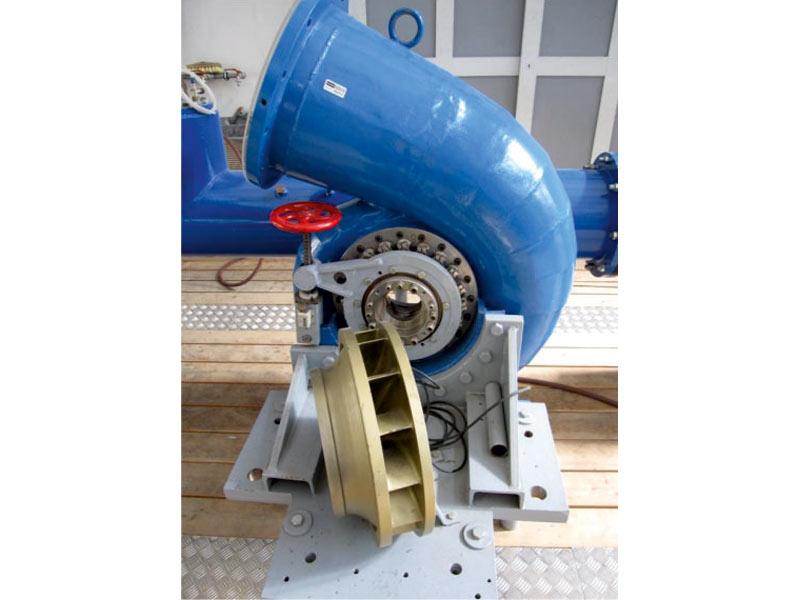

IEC 60193 - modell acceptance test: Francis turbine
IEC 60193 - modell acceptance test: Francis turbine

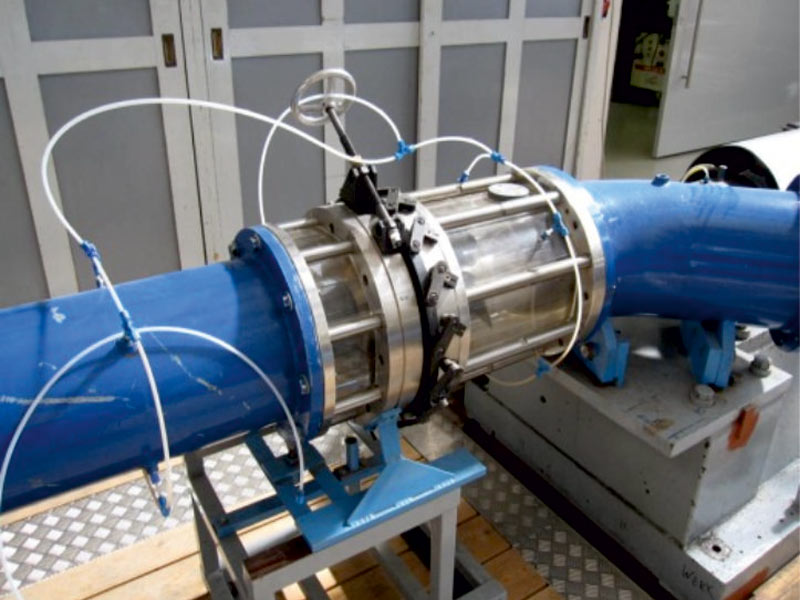

IEC 60193 - modell acceptance test: Axiale structure
IEC 60193 - modell acceptance test: Axiale structure

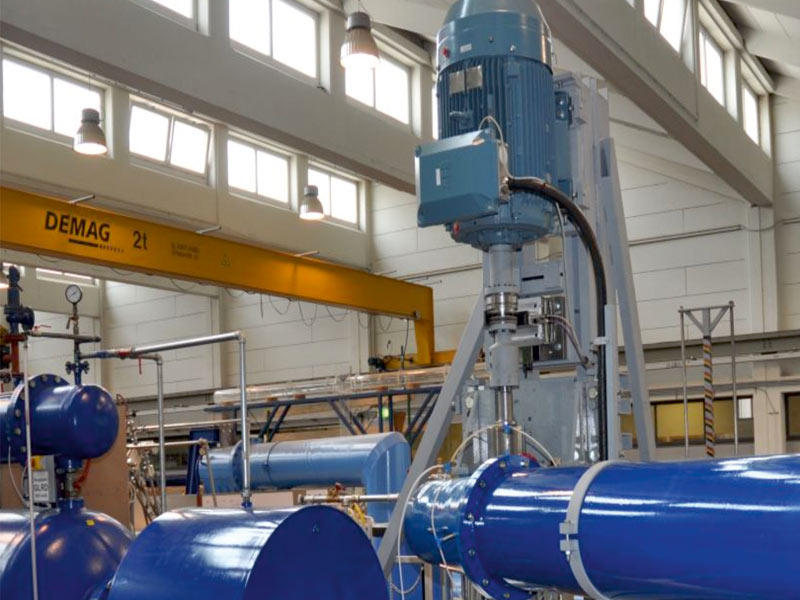

IEC 60193 - modell acceptance test: Francis turbine homolog
IEC 60193 - modell acceptance test: Francis turbine homolog
IEC 60193 - modell acceptance test: Turbine: Full load vortex
IEC 60193 - modell acceptance test: Turbine: Full load vortex
IEC 60193 - modell acceptance test:: Main testing ground
IEC 60193 - modell acceptance test:: Main testing ground

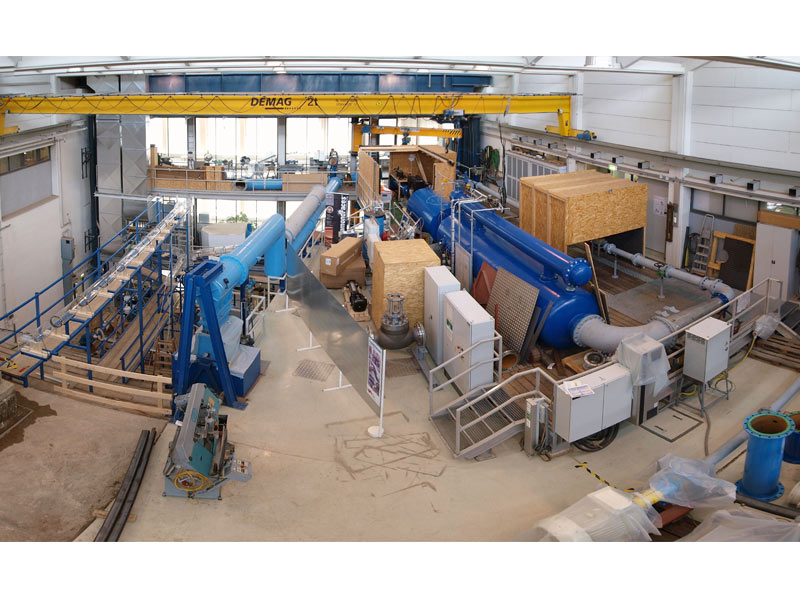

IEC 60193 - modell acceptance test: Experimental hall
IEC 60193 - modell acceptance test: Experimental hall

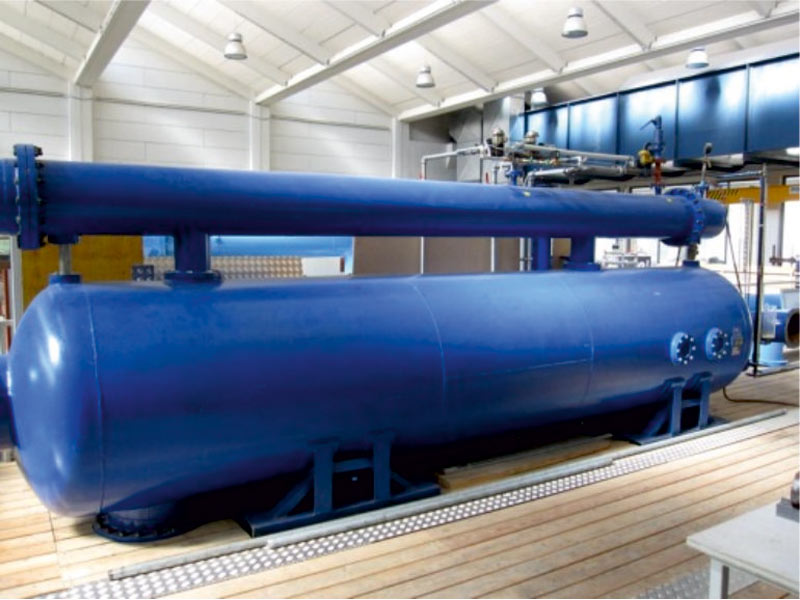

IEC 60193 - modell acceptance test: Underwater tank: Variably adjustable pressure: 1 m to 10 bar absolute. Adjustable cavitation conditions
IEC 60193 - modell acceptance test: Underwater tank: Variably adjustable pressure: 1 m to 10 bar absolute. Adjustable cavitation conditions


information test rig

We adopt our test rigs to special demands. Contact us to discuss your questions and custom design of the test rig.



Standards & norms

  • IEC 60193: Hydraulic turbines, storage pumps and pump-turbines – Model acceptance tests
  • IEC 60534: Industrial-process control valves
  • ISO 9906: Rotodynamic pumps  Hydraulic performance acceptance tests
  • IEC 60041: Field acceptance tests to determine the hydraulic performance of hydraulic turbines, storage pumps and pump-turbines
  • IEC 62006: Hydraulic machines – Acceptance tests of small hydroelectric installations

The list above is an excerpt. For the fulfillment of other standards please contact us.
