CFD calculations for a hydro power plant

End of 2012, computational fluid dynamics’ simulations (3D-CFD) were realised for a hydro power plant in Romania.

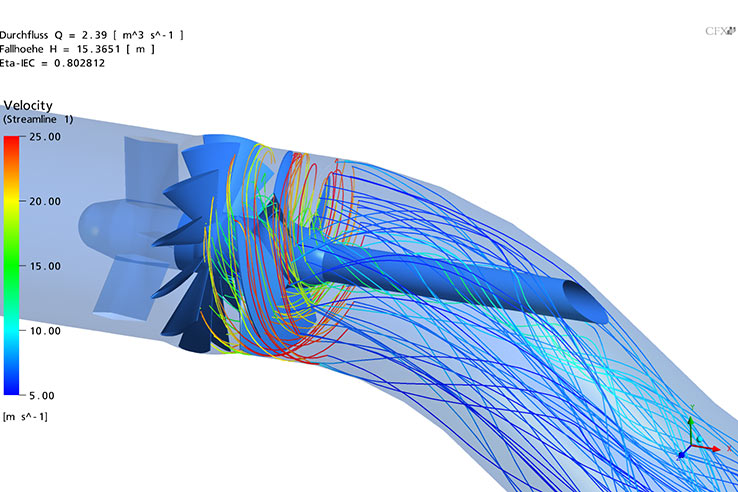

CFD simulations hydropower plant: results of CFD calculations for an EOS-700 turbine with streamlines
CFD simulations hydropower plant: results of CFD calculations for an EOS-700 turbine with streamlines

The hydro power plant has 3 parallel EOS-700 turbines (bulb turbines with one fixed and one variable blade position with a nominal diameter of 700 mm) and is part of an extensive power plant park consisting of different sizes of EOS turbines. As part of a refurbishment project the hydraulic contour of one set of machinery has been digitalised by means of a 3D surface scan, prepared for computational fluid dynamics; and as a result the hydro power plant could be analysed in detail.

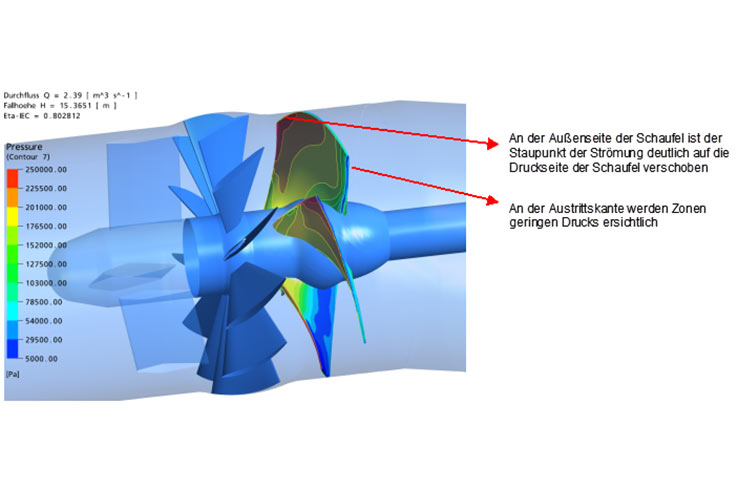

CFD simulations hydropower plant: distribution of pressure on the suction side of the blade at the optimum point in its original position
CFD simulations hydropower plant: distribution of pressure on the suction side of the blade at the optimum point in its original position

CFD simulations hydropower plant: efficiency

In the course of CFD simulations for the hydro power plant the moderate efficiency of the plant supposed in advance has been illustrated and the optimisation potential has been deduced. Furthermore, an efficiency shell of the plant has been calculated which shows; what the efficiencies to be expected at other EOS-700 locations with other operational data are and for which of these hydro power plant sites optimisation is of major and of minor importance..

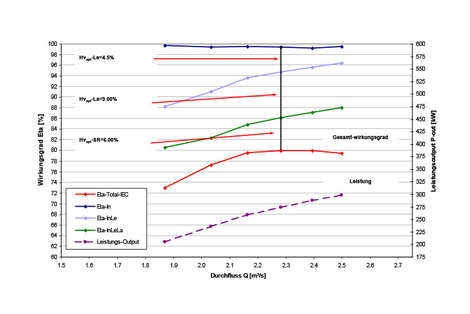

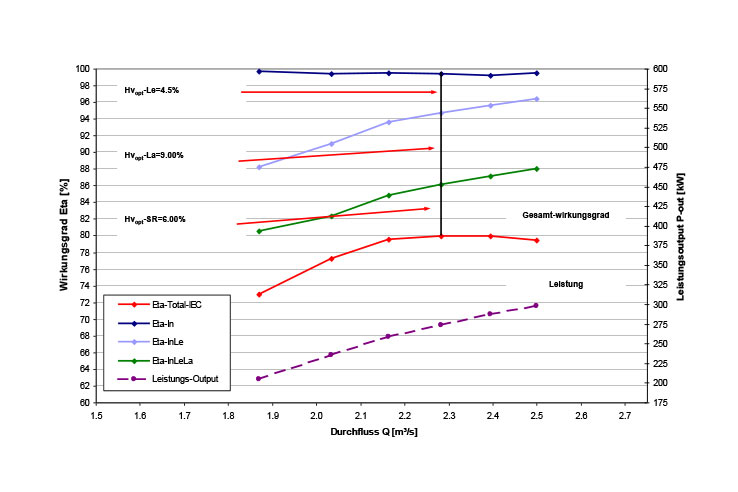

CFD simulations hydropower plant: efficiency splitting for the original blade position
CFD simulations hydropower plant: efficiency splitting for the original blade position

By means of plant measurements at different EOS-700 power plant locations the results of the simulations could be confirmed and the number of hydro power plants to be optimised could be limited.

This research project is being continued by the development of new hydraulics. See reference “Development of new hydraulics for a hydro power plant”
